PRESSES &
CRAMPS
Cold Presses
P 25 F | P 45 F | P 45 F | P 65 F | P 65 F
Hot Electric Presses
P 65 E | P 85 E | P 85 E | P 120 E | P 120 E
P 150 E | P 150 E | P 180 E
Hot Water/Oil Presses
P 45 | P 45 | P 65| P 65 | P 85 | P 85
P 120 | P 120 | P 150| P 150 | P 180 | P 180
Board Presses
P 110 | P 110 IL | P 111 | P 111 IL
Cramps
STE 3050 | STE 3500 | STM | STP

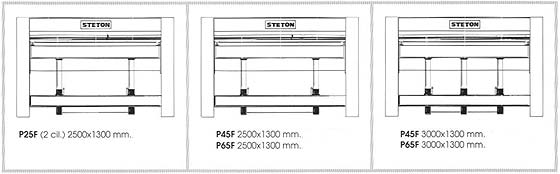

 Cold Presses
Click for Technical Information


Purpose: doors pressing, panels veneering for low production

Steton has a more than thirty-year experience in this field and offers a wide range of models for any kind of need: with 2, 4, 6 cylinders, dimensions 1300 x 2500, 3000 mm and thrust from 25 up to 65 Tons. Day-light between platens can be 450 or 650 mm; presses can close upwards or downwards; in this case, the bottom fixed platen can be equipped with infeed hidden rollers. Presses with platens divided in several sections and bending presses are available on request.


top
 Hot Electric Presses
Click for Technical Information


Purpose: doors pressing, panels veneering or laminating, for medium production

Steton has more than thirty-years experience in this field and offers a wide range of models for any kind of need: with 4, 6, 8 cylinders, dimensions 1300 x 2500, 3000, 3300, 3500 mm and thrust from 45 up to 180 Tons. Versions "E" have platens with electric resistors.

Optional items: intermediate platens, customized dimensions and thrust.


top

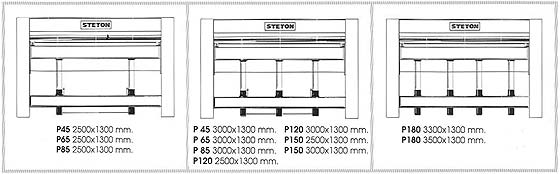

 Hot Water/Oil Presses
Click for Technical Information


Purpose: doors pressing, panels veneering or laminating, for medium production

Steton has a more than thirty-year experience in this field and offers a wide range of models for any kind of need: with 4, 6, 8 cylinders, dimensions 1300 x 2500, 3000, 3300, 3500 mm and thrust from 45 up to 180 Tons. Several types of platens are available: with pipe coils, assembled, drilled in solid steel; heating can be by water with wood.fired boiler or diathermic oil with electric boiler.

Optional items: intermediate platens, customized dimensions and thrust.


top
 Board Presses


Purpose: side glueing of solid wood ledges to get panels for wings, tables, furniture, etc.

Basic models, with upper or lower cylinders and standard dimensions from 2500 up to 3500 x 1300 mm (different sizes are available on request), consist of a composition bench (automatic for model "P 110", semi-automatic for "P 111"), a press station with vertical and horizontal cylinders, an outfeed bench for unloading. A special hydraulic clamping system allows the production of panels with width higher than nominal 1300mm. Versions "IL" are available, with on-line glueing unit and different equipments.

P 111
P 110 IL

P 111 IL With on-line or banked glueing unit

P 110 can be supplied with special equipment, with automatic multi-step loading and unloading with variable width of the ledges (see picture) or loading of ledges in different lengths, with on-line cut-off unit. It can also be supplied with panels sizing unit at the outfeed

top
 Cramps

STP



Steton offer single acting frame presses both for traditional frame with vertical cross beam and cylinders with simple effect and with movable horizontal beam, in different versions.

STE



STM
